HecKits Products Prices listed on home page

50 Ohm Bridge / Freq Counter

50 Ohm Bridge / Freq Counter

50 Ohm Bridge / Freq Counter

50 Ohm Bridge/Counter Specifications:

> Generates a 3 to 30 MHz low level signal displayed on small 8 x 2 LCD > 50 ohm bridge supports tuning 50 ohm antennas > Adjust POT to find the resonate frequency of antenna > 30 turn POT allows easy smooth frequency adjustment > Bright red LED extinguishes when bridge is balanced > Function switching allows for use as frequency counter > 50 ohm termination included > measures 5.5 x 2.5 x 1.1 inches > 9 volt battery operation

Buy 50 Ohm BRIDGE Now

LC Meter

50 Ohm Bridge / Freq Counter

50 Ohm Bridge / Freq Counter

LC Meter Specifications:
> Measures capacitance from tenths of a pF to .1 uF
> Measures inductance f

LC Meter Specifications:

 > Measures capacitance from tenths of a pF to .1 uF > Measures inductance from  a few nano-Hy to more than 10 mHy. > Uses small 8 x 2 LCD display > mini banana jacks  > 9 volt batter operation > Measures 5.5 x 2.5 x 1.1 inches.

Buy LC METER Now

2-Tone Audio Generator

50 Ohm Bridge / Freq Counter

Milliohm Meter-Short Tracer

Two Tone Generator Specifications:
> 2 tones, 1900 & 700 Hz
> 200 mv  output
> balance & level contr

Two Tone Generator Specifications:

> 2 tones, 1900 & 700 Hz

> 200 mv  output > balance & level controls

> Individual tone muting >Microphone level output

> measures 4.5 x 2.5 x 1.1 inches

 > 9 volt battery operation

Buy 2-Tone Gen Now

Milliohm Meter-Short Tracer

Milliohm Meter-Short Tracer

Milliohm Meter-Short Tracer

Milliohm Meter / Short Tracer Specifications:

> A variable audible tone changes with resistance > As a low resistance short is tracked the tone will decrease in frequency until it is a tic sound at the short. >Measures 5.5 x 2.5 x 1.1 inch. > 9 volt battery operation

Buy Milli Ohm Now

ESR Meter

Milliohm Meter-Short Tracer

FET Dip Meter

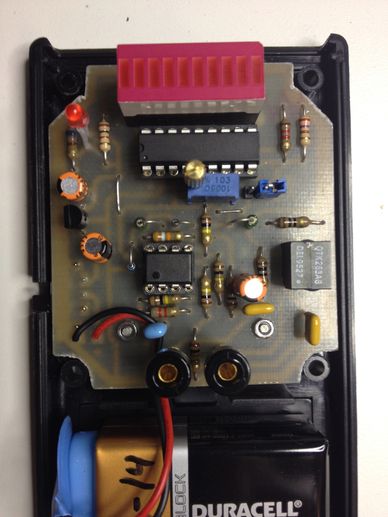

ESR Meter Specifications:

> measures ESR from .2 ohm to about 30 ohm > left LED lights at 30 ohm, far right  at .2 ohm

>  30 turn POT allows full scale calibration > Uses 50 kHz frequency at 200 mv for test > Can test capacitors in circuit without biasing    on solid state junctions. > Mini banana jacks > measures 4.5 x 2.5 x 1.1 inches > 9 volt battery operation

BUY ESR Meter NOW

FET Dip Meter

Milliohm Meter-Short Tracer

FET Dip Meter

FET DIP METER with Frequency Counter

 > Improved meter dip function > 1.3 to 30 MHz coverage > Small 350 uA meter movement > Five coils covers HF HAM band >95 turn #36 AWG coil comes pre-assembled > Measures 5.5 x 2.5 x 1.1 inch > 9 volt battery operation

Buy FET DIP METER Now

Heckits Products Cont'd Prices listed on home page

Variable Tone Generator

Parallel Line Return Loss Bridge

Parallel Line Return Loss Bridge

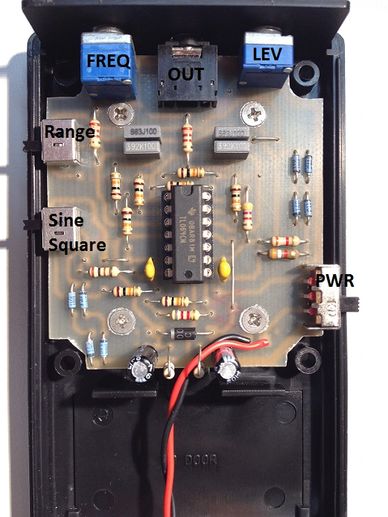

Variable Tone Gen Specifications:

> 60 Hz to 18 kHz approx

> 1.3 VAC P/P

> Frequency & Level Pots

> Sine or Square Wave

> 4.5 x 2.5 x 1.1 inches

> 9 volt battery operation

BUY TONE GEN NOW

Parallel Line Return Loss Bridge

Parallel Line Return Loss Bridge

Parallel Line Return Loss Bridge

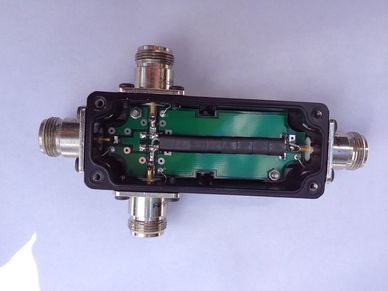

Return Loss Bridge Specifications:

> 4 Port N-Connector Bridge

> Generator in port,  Spectrum Analyzer port

>  50 Ohm reference port (50 OHM load not included.)

> DUT port (Device Under Test)

> 53 dB directivity

GO TO RLB INFO

CW-Keyer

Parallel Line Return Loss Bridge

CW-Keyer

CW-Keyer Specifications:

> PIC-12F629 HEX loaded by Jackson Harbor Press

> 4 to 50 WPM programmable or adjustable

> supports straight or paddle control

> 2 programmable memories

> All features of original NC-Keyer

> 4.5 x 2.5 x 1.1 inches

> 9 volt battery operation


BUY CW-KEYER NOW

Heckits Products Cont'd prices listed on home page

QRP mW Meter



Front view of HecKits mWatt Meter
10W, 1W, 100mW scales
Left knob REF/FWD
Right knob Off, 10W, 1W, 100mW

Select.  Send email inquiry at end of Home Page


Find out more

Heckits Products Cont'd prices listed on home page

62dB Step Attenuator

Ultra Sonic RFI Detector Coming Soon

Ultra Sonic RFI Detector Coming Soon

Available Now

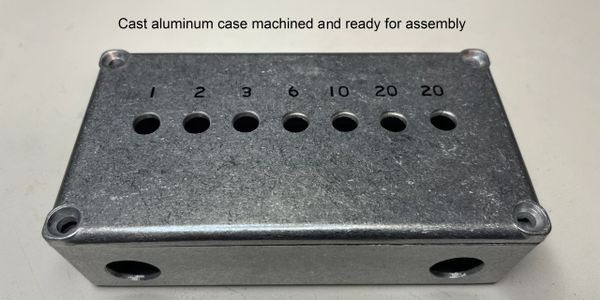

62dB Step Attenuator

50 ohm in & out

1, 2, 3, 6, 10, 20, 20dB Steps

Find out more

Ultra Sonic RFI Detector Coming Soon

Ultra Sonic RFI Detector Coming Soon

Ultra Sonic RFI Detector Coming Soon

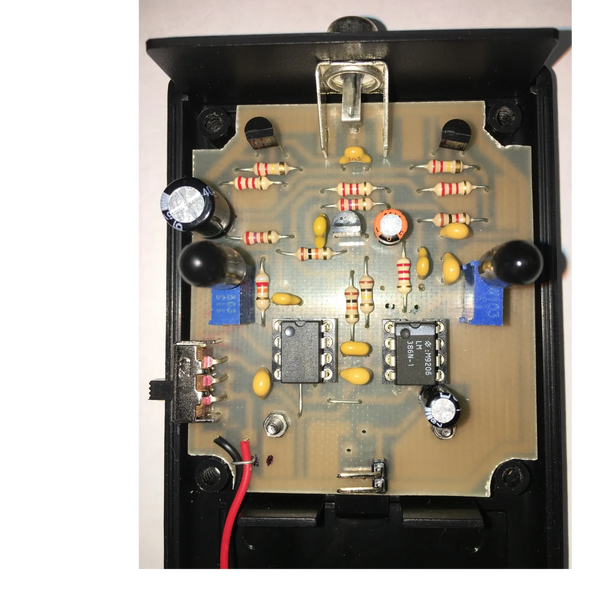

Detect radio frequency Interference (RFI) by pin pointing the ultra sonic noise component of arcing electricity. Quite often the RFI is a broadband of ultra sonic sounds as well as electrical interference.

ACVM/SINAD METER PRICE ON HOME PAGE

100uA Meter

ACVM/SINAD METER

ACVM/SINAD METER

100uA Meter with 3 and 10 AC Volt Scales

and -20 dB SINAD scale

ACVM/SINAD METER

ACVM/SINAD METER

ACVM/SINAD METER

Test instrument with  4 functions:

AC Volt Meter measures in RMS Volts or dBm, SINAD Meter measures in dB below 0dB, 1kHz Sine Wave Generator, 2.5W Audio Amp   Size: 8"x5.5"x2.9"

PCB

ACVM/SINAD METER

Wire harness and control cables

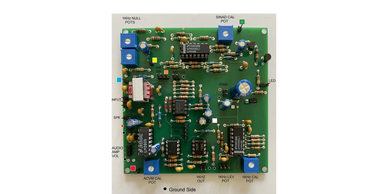

10 cm x 10 cm PCB has header pins for wire harness and cable connections.

Wire harness and control cables

Wire harness and control cables

Wire harness and control cables

The wire harness is pre-made with female header connectors ready to plug into the PCB. All front panel control cables have female header connectors.

Internal View

Wire harness and control cables

Front Panel Controls

PCB installed with wire harness and control cables connected. The kit comes with an 18 page PDF manual with very detailed assembly instructions which is emailed at the time of purchase.


BUY ACVM/SINAD METER

Front Panel Controls

Wire harness and control cables

Front Panel Controls

The VOL POT controls the level of audio fed to the 2.5W Amp & speaker. The LEV POT controls the 1kHz sine wave to the right hand BNC connector. The isolated input BNC connects to an isolation transformer. A toggle switch selects between the SINAD or ACVM mode of operation. The lower switch is the ON/OFF power switch.
