ACVM/SINAD METER (pRICE ON HOME PAGE)

100uA Meter

ACVM/SINAD METER

ACVM/SINAD METER

100uA Meter with 3 and 10 AC Volt Scales

and -20 dB SINAD scale

ACVM/SINAD METER

ACVM/SINAD METER

ACVM/SINAD METER

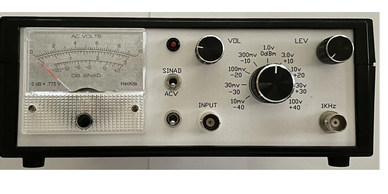

Test instrument with  4 functions:

AC Volt Meter measures in RMS Volts or dBm,  SINAD Meter measures in dB below 0dB, 1kHz Sine Wave Generator, 2.5W Audio Amp   Size: 8"x5.5"x2.9"

PCB

ACVM/SINAD METER

Wire harness and control cables

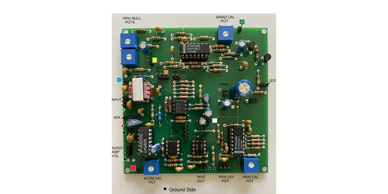

10 cm x 10 cm PCB has header pins for wire harness and cable connections.

Wire harness and control cables

Wire harness and control cables

Wire harness and control cables

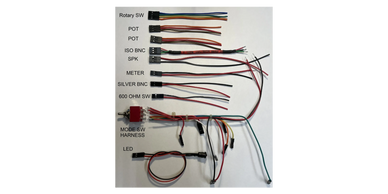

The wire harness is pre-made with female header connectors ready to plug into the PCB. All front panel control cables have female header connectors.

Internal View

Wire harness and control cables

Front Panel Controls

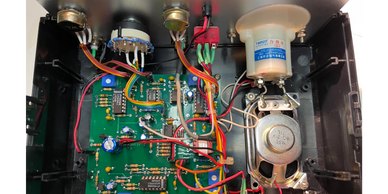

PCB installed with wire harness and control cables connected. The kit comes with an 18 page PDF manual with very detailed assembly instructions which is emailed at the time of purchase.


BUY ACVM/SINAD METER

Front Panel Controls

Wire harness and control cables

Front Panel Controls

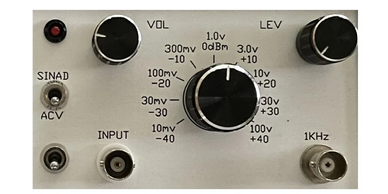

The VOL POT controls the level of audio fed to the 2.5W Amp & speaker. The LEV POT controls the 1kHz sine wave to the right hand BNC connector. The isolated input BNC connects to an isolation transformer. A toggle switch selects between the SINAD or ACVM mode of operation. The lower switch is the ON/OFF power switch.
